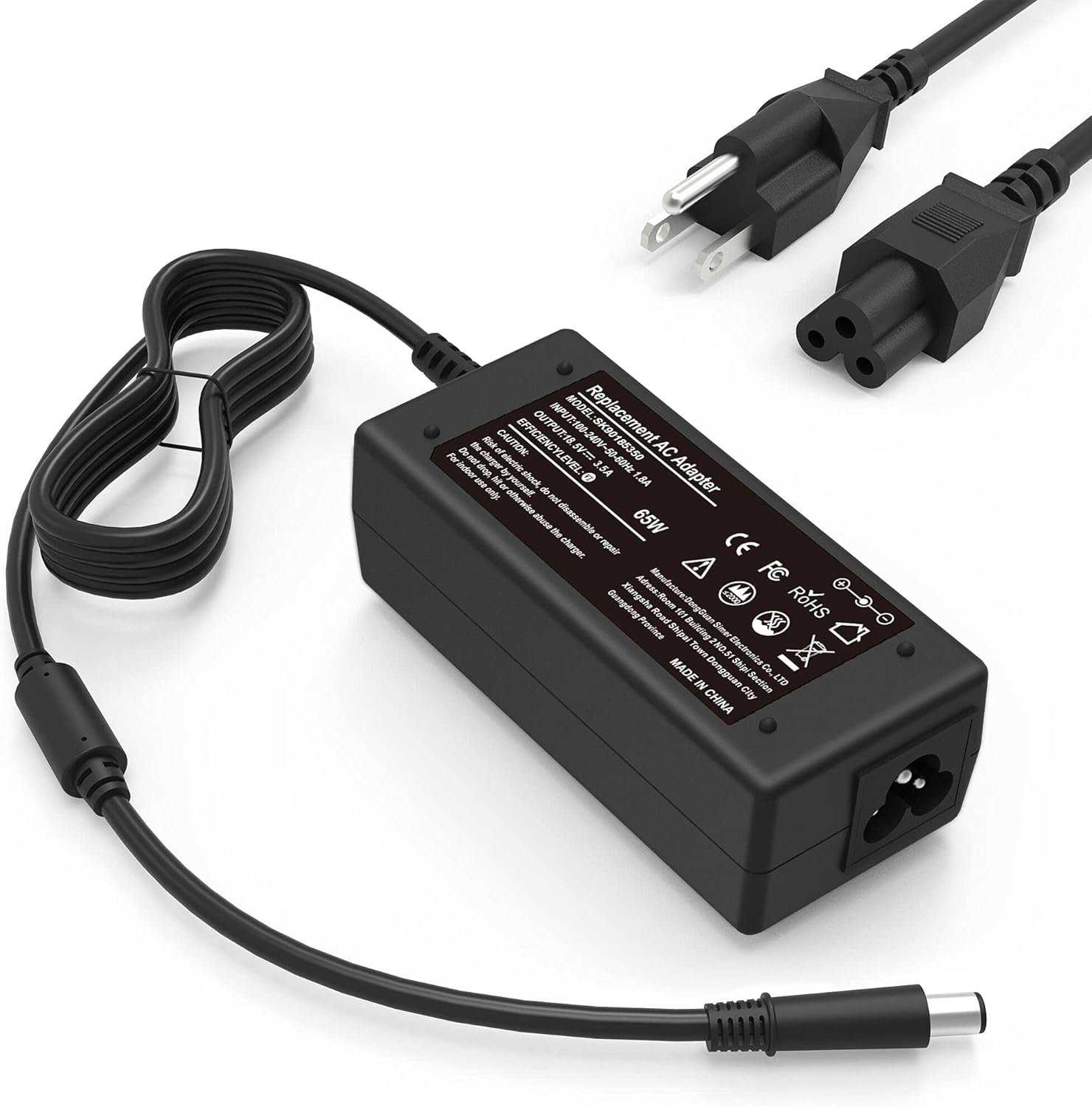

Laptop AC Adapter charger

DESCRIPTION

A laptop AC adapter, often simply called a charger, is an external power supply unit that performs a crucial task: converting the high-voltage alternating current (AC) from a standard wall outlet into the low-voltage direct current (DC) that a laptop’s battery and internal components can safely use.

These adapters are essential because a laptop cannot be plugged directly into a wall outlet. By handling the voltage conversion outside of the device, the adapter allows for a smaller, more streamlined laptop design. They are custom-engineered to meet the specific power requirements of a given laptop model, including its wattage, voltage, and amperage.

Key Features

• AC to DC Conversion:The adapter’s primary function is to convert the AC power from your wall outlet into DC power. This conversion is handled by a rectifier circuit within the power “brick” of the adapter.
• Wattage (Power Output):Measured in watts (W), this is the most critical specification. It represents the total power the charger can supply to the laptop. Wattage must match or exceed the laptop’s requirements.
• Low Wattage (30W-45W):For ultra-portable laptops and Chromebooks.
• Mid-Range (65W-90W):The most common range for everyday consumer and business laptops.
• High Wattage (120W-330W+):For powerful gaming laptops and mobile workstations with dedicated graphics cards.
• Voltage and Amperage:The charger’s output voltage (V) and amperage (A) must match the laptop’s input requirements. The voltage is typically a fixed value (e.g., 19V, 20V) while amperage can vary. The product of these two values gives you the wattage (Watts = Volts x Amps).
• Connector Types:Laptop chargers are not universal and use a wide variety of connectors. These can be brand-specific and include:
• Barrel Connectors:The most common type, with various dimensions.
• Proprietary Connectors:Such as HP’s “Smart Pin” or Dell’s “7.4mm” tip.
• USB-C:The modern standard for many laptops. It supports the USB Power Delivery (USB-PD) protocol, which allows the charger and laptop to negotiate the ideal voltage and wattage, making it a more versatile and universal option.
• Safety Features:High-quality adapters are built with internal circuits that provide protection against:
• Over-voltage and Over-current:Protects the laptop from power surges.
• Overheating:Prevents the adapter from reaching unsafe temperatures.
• Short-circuiting:Automatically shuts off to prevent damage in case of a fault.
• Travel and Portability:Adapters typically work with a wide range of input voltages (100V-240V), making them suitable for international travel with a simple plug adapter. Many modern chargers, especially those with GaN (Gallium Nitride) technology, are significantly smaller and lighter than their traditional counterparts.
